Author Topic: From Russia With Love GB (Su-27SM)  (Read 23054 times)

0 Members and 1 Guest are viewing this topic.

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
From Russia With Love GB (Su-27SM)
« on: January 16, 2016, 12:05:17 AM »
I'm doing a group build over at International Scale Modeller and I thought I would share my progress here for anyone interested in scale modelling. It'll likely be slow going as I've got 4 months to complete it - and I have other things pulling on my time.

I'm by no stretch of the imagination a great modeller - but I learn new techniques all the time and I pick up some great ideas from the site.

Anyway - I'll copy and paste my posts here.

Hi all.

Very nervous. First GB and I'm full of trepidation because I've seen the quality of the work from members around here. I'm a very, very amateur modeller who makes about 2 or 3 models a year...so I'll bring what I can to this build.

This will be an OOB (out of the box) build. No after market parts. That's partly because I'm a tight sod - but also, I like to make do with what I'm given.

Anyway - the subject matter...

The Revell 1:72 Su-27 SM Flanker


A small video of it's entertainment value from Youtube


And some information (from wiki)

Su-27
The Sukhoi Su-27 (Russian: Сухой Су-27) (NATO reporting name: Flanker) is a twin-engine super manoeuvrable fighter aircraft designed by Sukhoi. It was intended as a direct competitor for the large United States fourth-generation fighters such as the Grumman F-14 Tomcat and F-15 Eagle, with 3,530-kilometre (1,910 nmi) range, heavy aircraft ordnance, sophisticated avionics and high manoeuvrability. The Su-27 most often flies air supremacy missions, but its most modern variants are able to perform almost all aerial warfare operations. Complementing the smaller MiG-29, the Su-27 has its closest US counterpart in the F-15 Eagle.

The Su-27 entered service with the Soviet Air Forces in 1985. The primary role was long range air defence against American SAC B-1B and B-52G/H bombers, protecting the Soviet coast from aircraft carriers and flying long range fighter escort for Soviet heavy bombers such as the Tu-95 "Bear", Tu-22M "Backfire" and Tu-160 "Blackjack".

There are several related developments of the Su-27 design. The Su-30 is a two-seat, dual-role fighter for all-weather, air-to-air and air-to-surface deep interdiction missions. The Su-33 'Flanker-D' is a naval fleet defence interceptor for use on aircraft carriers. Further versions include the side-by-side two-seat Su-34 'Fullback' strike/fighter-bomber variant, and the Su-35 'Flanker-E' improved air superiority and multi-role fighter. The Shenyang J-11 is a Chinese licence-built version of the Su-27.

This machine can perform the manoeuvre known as Pugachev's Cobra so beautifully shown in the video above.  The manoeuvre involves dynamic deceleration with briefly sustained level flight at a 120° angle of attack


Armament
It's armament for the Su-27 SM variant includes
1 × 30 mm GSh-30-1 cannon with 150 rounds
8 x R-77 advanced medium-range missile
6 x KAB-500KR and KAB-500L guided bombs
4 x Kh-29T/L air to surface missile
4 x Kh-31P/A anti-radar/ship missiles
4 x Kh-35 anti-ship missile

Here's the full wiki page
https://en.wikipedia.org/wiki/Sukhoi_Su-27

And some info from the model instructions


Well - here goes...good luck to everyone   :cheers2:
Alba gu' brath

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #1 on: January 16, 2016, 12:05:25 AM »
The Sprues

Lee's pet hate - sprues in one bag!


And each of the sprues - the detail isn't bad and there's virtually no flash - I mean almost ZERO flash. That's a good start.








The glass isn't amazing...


And the decals...there are lots and lots. I have to be honest, but the decals are always my least favourite part of building a model and made worse with modern aircraft having so many!
Alba gu' brath

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #2 on: January 16, 2016, 12:05:55 AM »
The Build Instructions
It doesn't look too difficult on the face of it...but it is Revell, so I expect there may be a few issues along the way









The colour callouts and decal positions  :ooops:



And the weapon specific colour callout and decals page
Alba gu' brath

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #3 on: January 16, 2016, 12:07:20 AM »
I've not actually started this one yet. I'm waiting on completing the Tamiya Sea Harrier I started. I've got 4 months to complete it anyway. I predict a start in the next couple of weeks.

Thanks for reading.
Alba gu' brath

Offline LongBlade

  • Unsanctioned Psyker
  • Blunderbuster
  • ****
  • Posts: 27192
  • No Regerts
Re: From Russia With Love GB (Su-27SM)
« Reply #4 on: January 16, 2016, 08:55:39 AM »
I'm excited to see how this goes.

Offline Nefaro

  • Arquebusier
  • ***
  • Posts: 15698
Re: From Russia With Love GB (Su-27SM)
« Reply #5 on: January 16, 2016, 10:38:35 PM »
Looking forward to it JD!   O0

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #6 on: February 04, 2016, 02:31:00 PM »
I've started - yaaay!

This will be slow as the super fantastic 6 Nations is on for the next 6 weeks and I'll be drunk most weekends (as a Scot, it's the only way to get through it)

Anyway. I made a start before I head off to Murrayfield to watch Scotland take on the mighty Auld Enemy.

It seems rather strange, but I've started at step 21. The reason for doing so is because the glue needs to set. The step is putting the nose weight in.

So - step 21 is putting 10g of weight in the nose


First, getting the nose off, I had a bit of sanding to do to get rid of the sprue connections.

For that I used UMP Coarse sanding stick rubbed very lightly and then some UMP Fine sanding stick to remove any impressions the coarse stick left.



Next, get some PVA into the nose and wipe it around. This was just a precaution measure to make sure the weight I was putting in would have something to bind to the side. I then put 9g of weight in using Liquid Gravity



I then topped up the nose cone with PVA glue which took the weight to 11g


I was rather surprised at how much 10g actually was...I didn't think it was all going to fit in.

Hopefully, jumping ahead to this step is not an issue. I knew I had to put nose weight in and I knew it would have to set, so I decided to do it early.

And that's that. Sorry for getting your hopes up...I know there's not a lot here. But I do hope to get cracking in Feb and March (rugby aside).
Alba gu' brath

Offline LongBlade

  • Unsanctioned Psyker
  • Blunderbuster
  • ****
  • Posts: 27192
  • No Regerts
Re: From Russia With Love GB (Su-27SM)
« Reply #7 on: February 04, 2016, 05:12:14 PM »
Good to see it underway.

Offline mirth

  • Tercio
  • ******
  • Posts: 48613
  • Cardboard Harlot
Re: From Russia With Love GB (Su-27SM)
« Reply #8 on: February 04, 2016, 05:26:31 PM »
"45 minutes of pooping Tribbles being juggled by a drunken Horta would be better than Season 1 of TNG." - SirAndrewD

"you don't look at the mantelpiece when you're poking the fire" - Bawb

"Can’t ‘un’ until you ‘pre’, son." - Gus

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #9 on: February 12, 2016, 01:57:19 PM »
In case anyone is wondering what Liquid Gravity looks like once the PVA is settled....



Sorry progress is slow. It's a result of the 6 Nations on weekends I'm afraid.
Alba gu' brath

Offline LongBlade

  • Unsanctioned Psyker
  • Blunderbuster
  • ****
  • Posts: 27192
  • No Regerts
Re: From Russia With Love GB (Su-27SM)
« Reply #10 on: February 12, 2016, 02:02:15 PM »
In case anyone is wondering what Liquid Gravity looks like once the PVA is settled....



Sorry progress is slow. It's a result of the 6 Nations on weekends I'm afraid.

What? Now that the Superbowl is over you have no excuses.

Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #11 on: February 12, 2016, 02:09:27 PM »
I do have a break next weekend as there's no rugby...so I will get some progress made.
Alba gu' brath

Offline GDS_Starfury

  • Musketeer
  • *****
  • Posts: 36819
  • Sons of Punarchy
Re: From Russia With Love GB (Su-27SM)
« Reply #12 on: February 12, 2016, 06:50:53 PM »

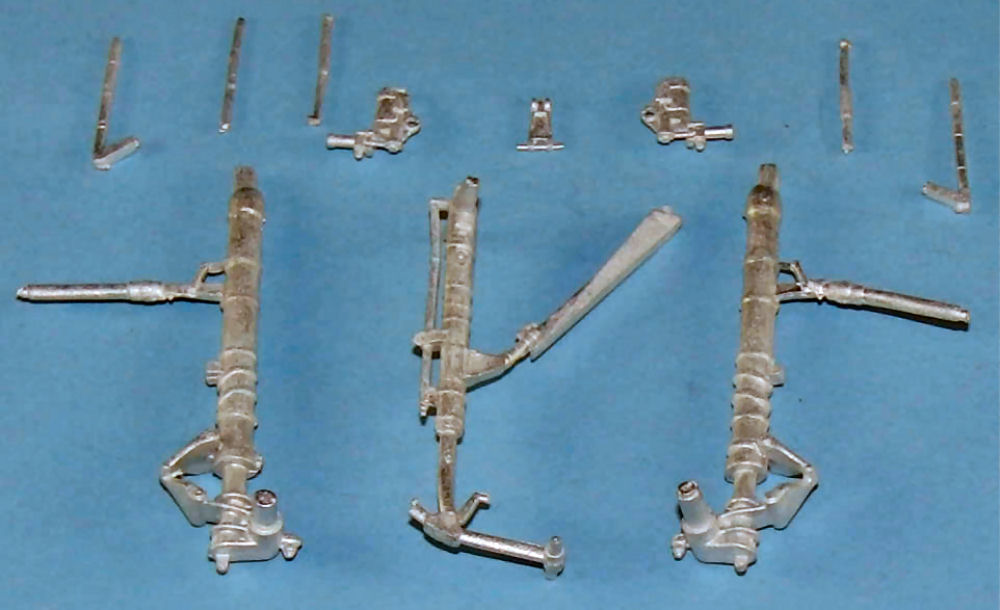

you might want to thing about getting some aftermarket land gear for the if your going to add weight to the nose.
Gus - I use sweatpants with flannel shorts to soak up my crotch sweat.

Banzai Cat - There is no "partial credit" in grammar. Like anal sex. It's either in, or it's not.

Mirth - We learned long ago that they key isn't to outrun Star, it's to outrun Gus.

Martok - I don't know if it's possible to have an "anti-boner"...but I now have one.

Gus - Celery is vile and has no reason to exist. Like underwear on Star.


Offline GDS_Starfury

  • Musketeer
  • *****
  • Posts: 36819
  • Sons of Punarchy
Re: From Russia With Love GB (Su-27SM)
« Reply #13 on: February 12, 2016, 07:06:32 PM »
Gus - I use sweatpants with flannel shorts to soak up my crotch sweat.

Banzai Cat - There is no "partial credit" in grammar. Like anal sex. It's either in, or it's not.

Mirth - We learned long ago that they key isn't to outrun Star, it's to outrun Gus.

Martok - I don't know if it's possible to have an "anti-boner"...but I now have one.

Gus - Celery is vile and has no reason to exist. Like underwear on Star.


Offline JudgeDredd

  • Longbowman
  • **
  • Posts: 9619
Re: From Russia With Love GB (Su-27SM)
« Reply #14 on: February 12, 2016, 11:41:00 PM »
Different aircraft...I'm building the Su27 and these parts are for the Su30

Thanks anyway - but I'm doing "out of the box". I did buy a cockpit kit but I'm unlikely to use it tbh. I just don't want to get into after market...it can considerably increase the cost of a model.

Maybe when I turn professional  :2funny:
Alba gu' brath
